HD.40

up to 4 m.
Complete technical sheet

HD.40

Reversible hydraulic operator (without blocks) or gates up to 4 m.

  NEW ELECTRIC MOTOR​

  • Reliability and high-quality materials

    Chrome-plated steel shaft and anodised aluminium profiles ensure maximum resistance to atmospheric agents. Brass bypass valves are used for greater regulation, ensuring maximum crush-resistance.
  • Very easy to install and maintain

    The terminal boards built into the oil cap make installation faster and easier. It is also easy to replace the power cable and control the oil level even when the operator is already installed.
  • Self-alignment

    The rear pivot joint makes installation easier, making up for any lack of alignment of the gate.
  • Top performance

    The new electric motor ensures excellent performance, greater thrust and even more intensive use.
  • Personalised key-operated release

No blocks (reversible) HD.40
Max absorbed current 1.1 A
Absorbed power 250 W
Motor supply 230 Vac 50/60 Hz
Pump flow rate 1 l/min
Max. oil pressure 33 Bar
Maximum thrust 5000 N
Capacitor 10 μF
Stroke length 270 mm
Shaft speed 1 cm/s
Ram shaft diameter 20 mm
Hydraulic slow-down No
Joints Rear
Thermal protection 150 °C
Operating temperature -15 °C ÷ + 50 °C
Protection rating IP55
Operating cycle INTENSIVE USE
Maximum leaf length 4.0 m
Maximum leaf weight 500 Kg
Oil HYDRO OIL

HD.STC

Internal mechanical stop in opening and closing.

DU.FIX

Counterplate suitable for the installation on columns made of stones.

DU.V96

12 Vdc vertical electric lock.

E.LOCK

230 Vac vertical electric lock.

E.LOCKSE

Extended cylinder for E.LOCK electric lock.

BIO OIL

Biodegradable hydraulic oil. 2-litre container.

BRAINY

230 Vac Control Panel.

CIDRA RI-C

230 Vac Control Panel.

DREAMY

230 Vac Control Panel.

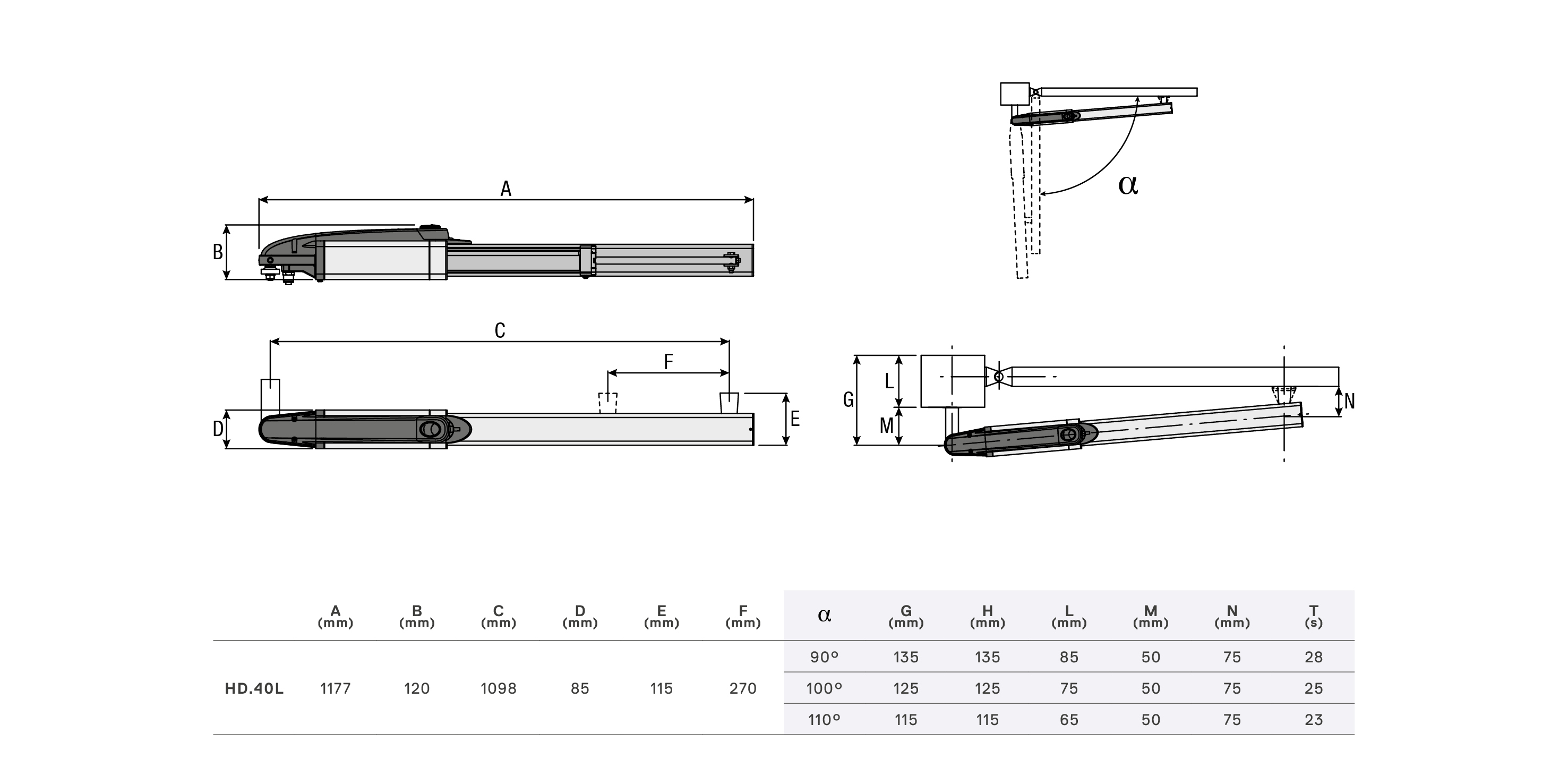

Technical drawing HD.40
