HD.3524E
up to 3.5 m.
-
Commercial Use -
Industrial Use -
Up to 3.5 m. -
Max 500 Kg.
HD.3524E
HD.3524E - Hydraulic operator for gates up to 3,5 m - No blocks (reversible).
HD.3524EAC - Irreversible hydraulic operator with rear and front joint for gatesb up to 3,5 m with opening and closing blocks.
HIGH-PERFORMANCE MOTOR
INTEGRATED ENCODER
-
Reliability and high-quality materials
Chrome-plated steel shaft and anodised aluminium profiles ensure maximum resistance to atmospheric agents. Brass bypass valves are used for greater regulation, ensuring maximum crush-resistance. -
Anti-crushing safety
The presence of the encoder and the low voltage motor allow to optimize performance, safety level and precision in the gate movement phases. -
Operating fluidity
The adjustable electronic deceleration in opening and closing allows maximum silence and fluidity of maneuver. Avoiding the strong impacts against mechanical stops also limits the risk of breakdowns in the installation. -
Top performances
The electric motor ensures excellent performance, optimal thrust and more intensive use. -
Personalised key-operated release
-
Self-alignment

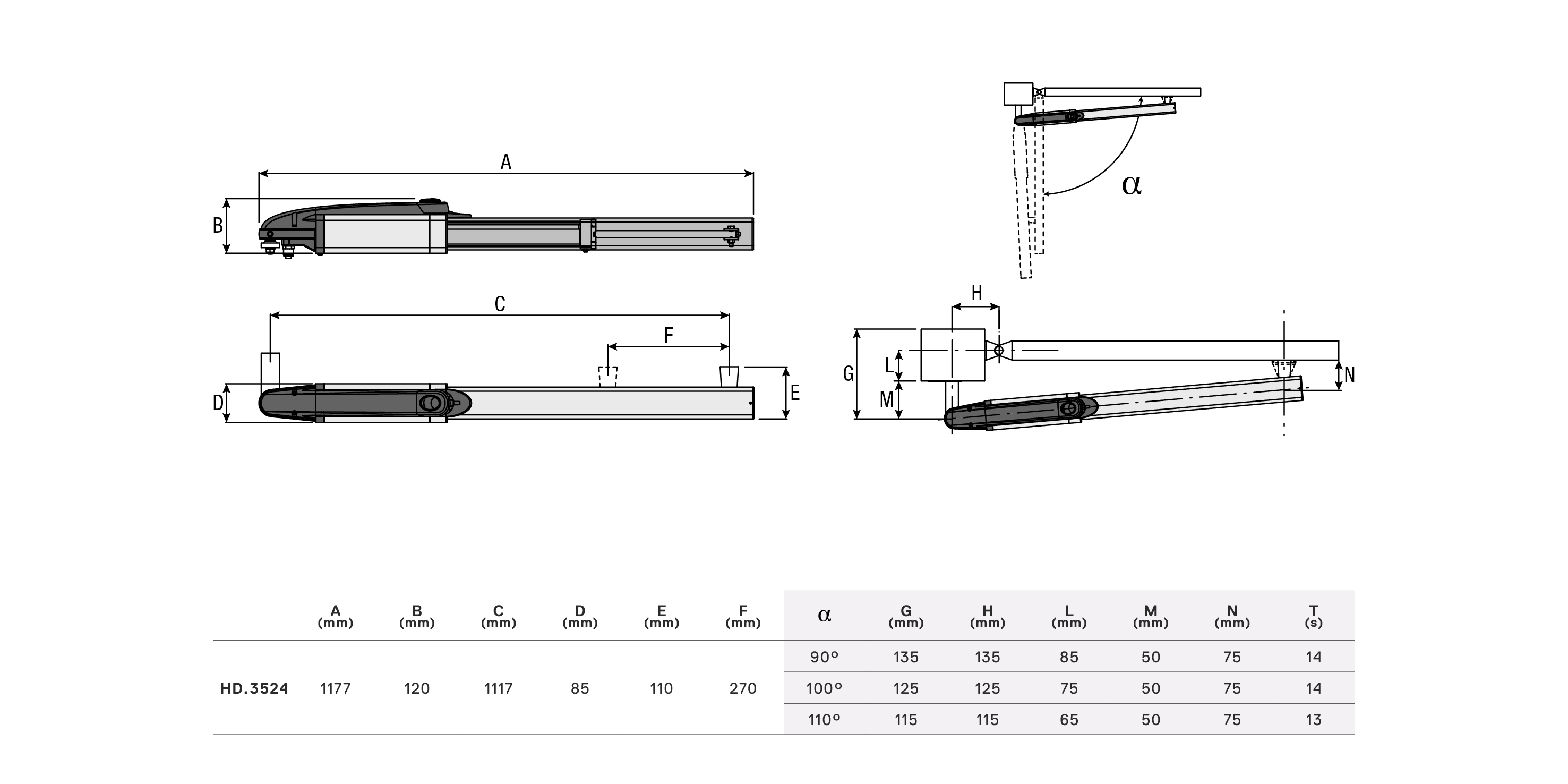

The rear pivot joint makes installation easier, making up for any lack of alignment of the gate. -
Perfect stroke adjustment
The adjustable front spherical joint enables perfect adjustment of the stroke, the ideal solution for systems on gates that are not perfectly aligned. -
Very easy to install and maintain
Operator installation is quick and intuitive thanks to the terminal board that facilitates motor wiring. Maintenance is quick thanks to the possibility of easily replacing the power cable or control the oil level even when the operator is already installed.
| No blocks (reversible) | HD.3524E |
| Blocks in opening and closing phases (non-reversible) | HD.3524EAC |
| Motor supply | 24 Vdc |
| Max absorbed current | 5 A |
| Pump flow rate | 1,4 l/min |
| Absorbed power | 240 W |
| Max. oil pressure | 33 bar |
| Maximum thrust | 4000 N |
| Stroke length | 270 mm |
| Shaft speed | 2 cm/s |
| Ram shaft diameter | 20 mm |
| Electronic slowdown | In closing |
| Hydraulic slow-down | In opening and closing phases |
| Joints | Front and rear |
| Operating temperature | -20 °C ÷ + 50 °C |
| Protection rating | IP55 |
| Operating cycle | INTENSIVE USE |
| Maximum leaf length | 3,5 m |
| Maximum leaf weight | 500 kg |
| Oil | D.OIL |
 | HYBRA2424 Vdc Control Panel. |
 | DU.FIXCounterplate suitable for the installation on columns made of stones. |
 | HD.STCInternal mechanical stop in opening and closing. |
 | DU.V9612 Vdc vertical electric lock. |
 | E.LOCK230 Vac vertical electric lock. |
 | E.LOCKSEExtended cylinder for E.LOCK electric lock. |
 | D.OILBiodegradable hydraulic oil. 2-litre container. |
