HYBRA24

HYBRA24

Application:
1 or 2 actuators of the series HD.3524 / HD.5024 equipped with encoder
Control unit power supply:
115 or 230 Vac (selectable) 50/60Hz
Motor power supply:
24 Vdc  240W + 240W
Main functions:

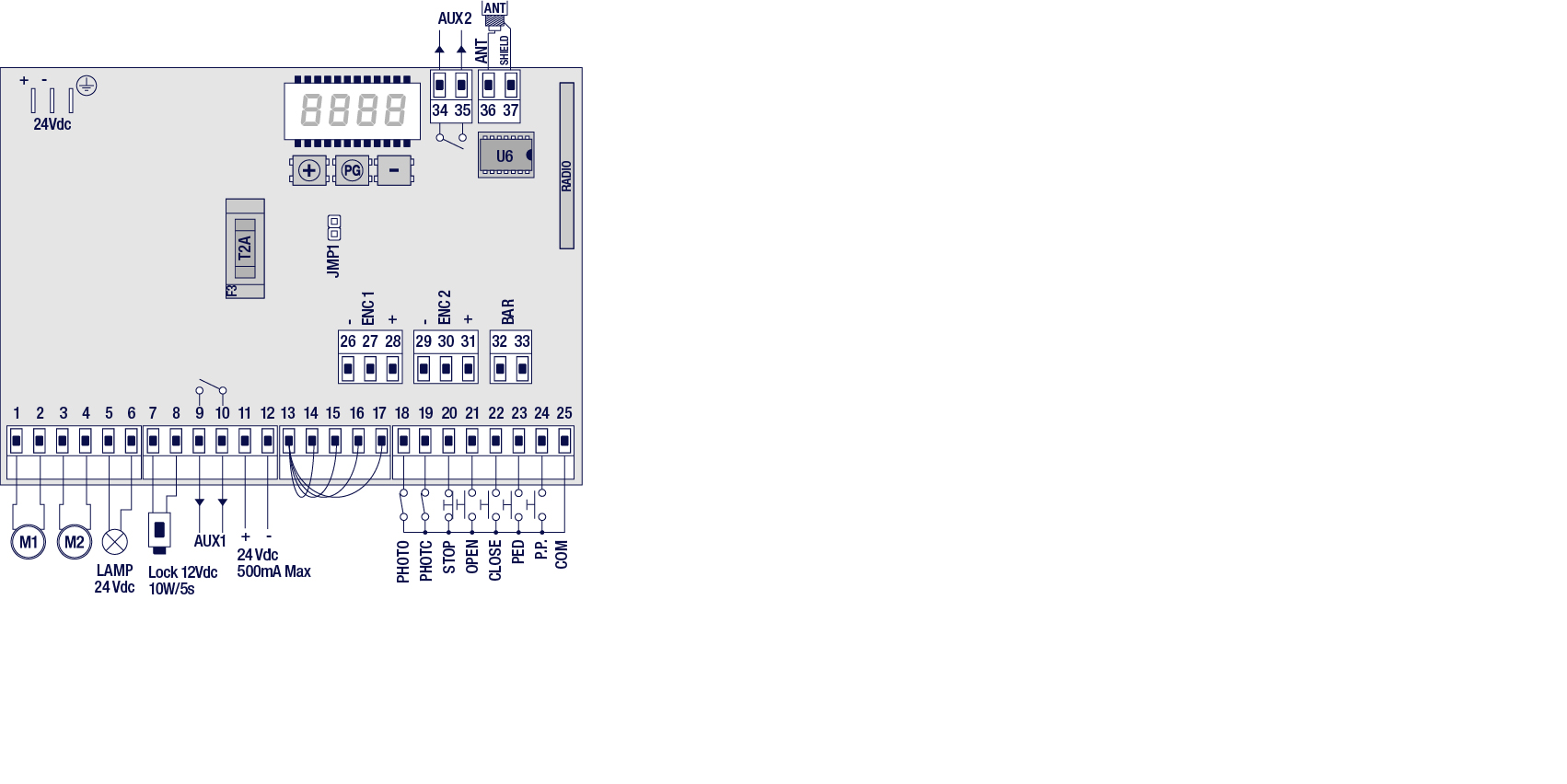

Built-in LCD display. | Built-in 433,92 MHz radio receiver, with 64 codes and ARC encoding. | Removable terminal boards. | Open, close, step by step and pedestrian inputs. |Separate photocell inputs in opening-closing and closing phases. | Stop input. | Input for NC or 8K2 sensitive edge. | Inputs for the encoder of motors of the series HD.3524/HD.5024. | Output for 12 Vdc electric lock. | 2 outputs configurable as open gate indicator, second radio channel, courtesy light, area light or photocell testing. | Autosetting of operating parameters. | Separate electronic torque adjustment for each motor. | Anti-crushing safety with amperometric detection and encoder management. | Slow-downs for each motor during the opening and closing phase. | Possibility to configure parameters and manage transmitters through the Advantouch system. | Number of cycles. | Programming access password. | Maintenance warning. | Built-in battery charger, compatible with batteries DA.BT2/DA.BT6. | Adjustable working time | Set-up for X.BE accessory (module for KNX interface). | IP55.
