SHADE
SHADE
Application:
1 tubular electromechanical motor for blinds and awnings.
Control unit power supply:
230 Vac 50/60 Hz
Motor power supply:
230 Vac max 300 W
Main functions:

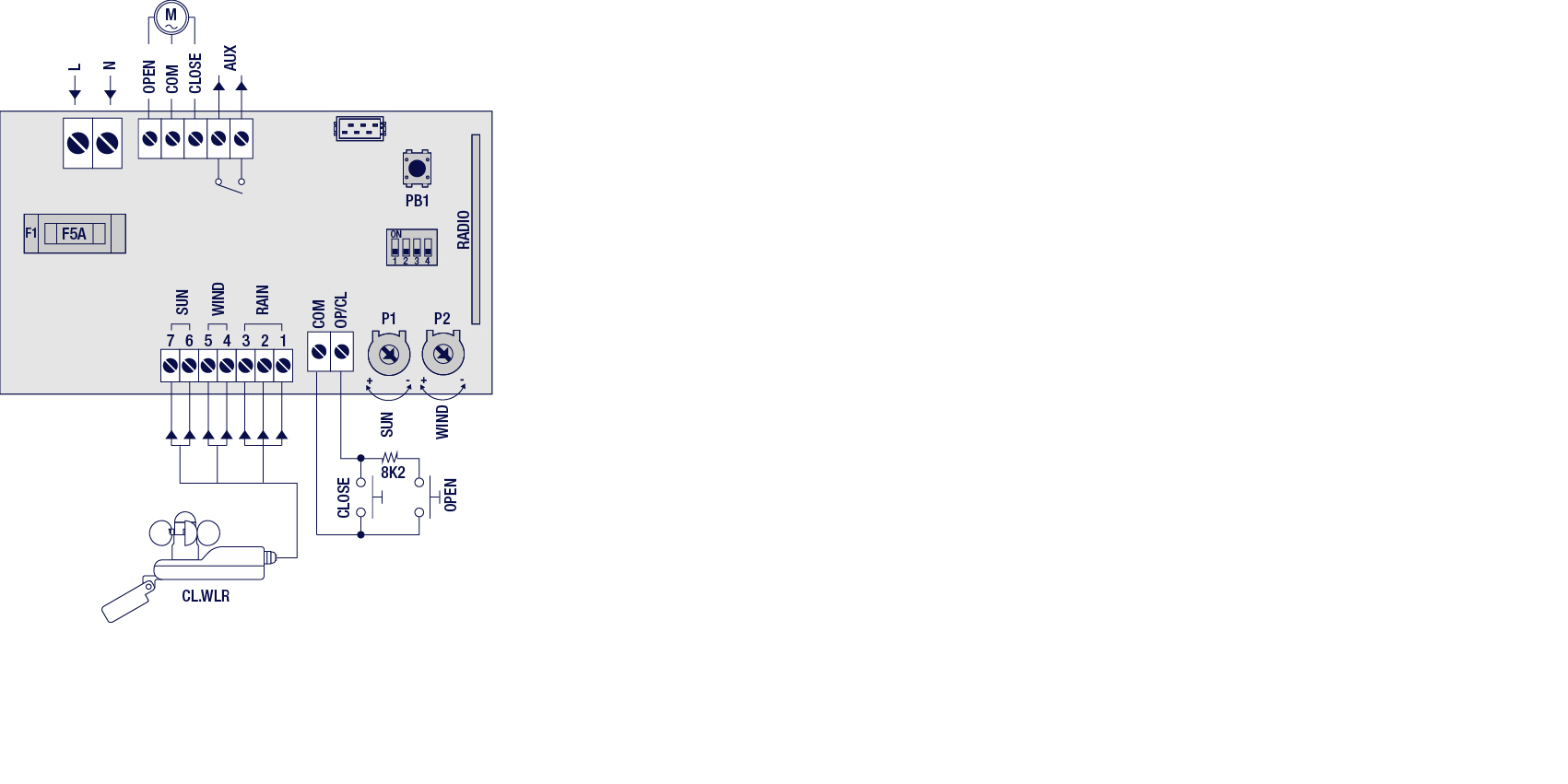

4 Dip-Switches, 1 switch, 2 trimmers. | LED diagnostics. | Integrated 433.92 MHz 14-code radio receiver and 3 encoding systems (rolling code / programmable code / ARC). | Fixed terminal boards. | Separate open/close inputs using two conductors only (balanced input). | Inputs for sun sensor, wind sensor, rain sensor. | 1 configurable open gate indicator, 2nd radio channel, service light, zone light or photocell testing. | Adjustable working time | Set-up for X.BE accessory (module for KNX interface). | IP54.
 | XSBBox with reduced dimensions for control units and accessories. Protection rating IP54. |
 | T2VATwo-channel transmitter. |
 | THUMB.3232-channel transmitter. |
 | X.BEElectronic interface board between the KNX communication system and automation devices. |
 | F.BY230-CFlashing light, 230 Vac with built-in aerial. |
