RO.40 9/16

TUBOLAR MOTOR Ø 35MM (9NM - 16 R.P.M)

RO.40 9/16

  • Mechanical stop

    Adjusting the mechanical stop is easy and intuitive and ensuring a correct stop position in time.
  • Robustness and safety

    The star-shaped metal reduction gear pin makes the motor very reliable and provides high performances.
Max absorbed current 0.5 A
Absorbed power 120 W
Motor supply 230 Vac 50 Hz
Limit switch revolutions 35
Maximum torque 9 Nm
Speed 16 r.p.m.
Operating time 4 min
Protection rating IP44
4 x 0.75 mm² cable lg. 2.5 m
Weight 1.55 kg

RO.40 OT40

Ø40 - Octagonal adapters kit.

RO.40552

10 mm flanged square with omega bracket.

RO.OCC

Eyelet 86 mm, hexagon 7 mm.

RO.OCL

Eyelet 180 mm, hexagon 7 mm.

RO.AS

Articulated bar with hook (L=150 mm).

RO.SD60°

Articulated joint with eyelet 60°.

RO.SD90°

Articulated joint with eyelet 90°.

CL.FWS

230 Vac Control Panel.

CL.G4 / CL.G4.RR

230 Vac Control Panel.

ES.MINI

230 Vac Control Panel.

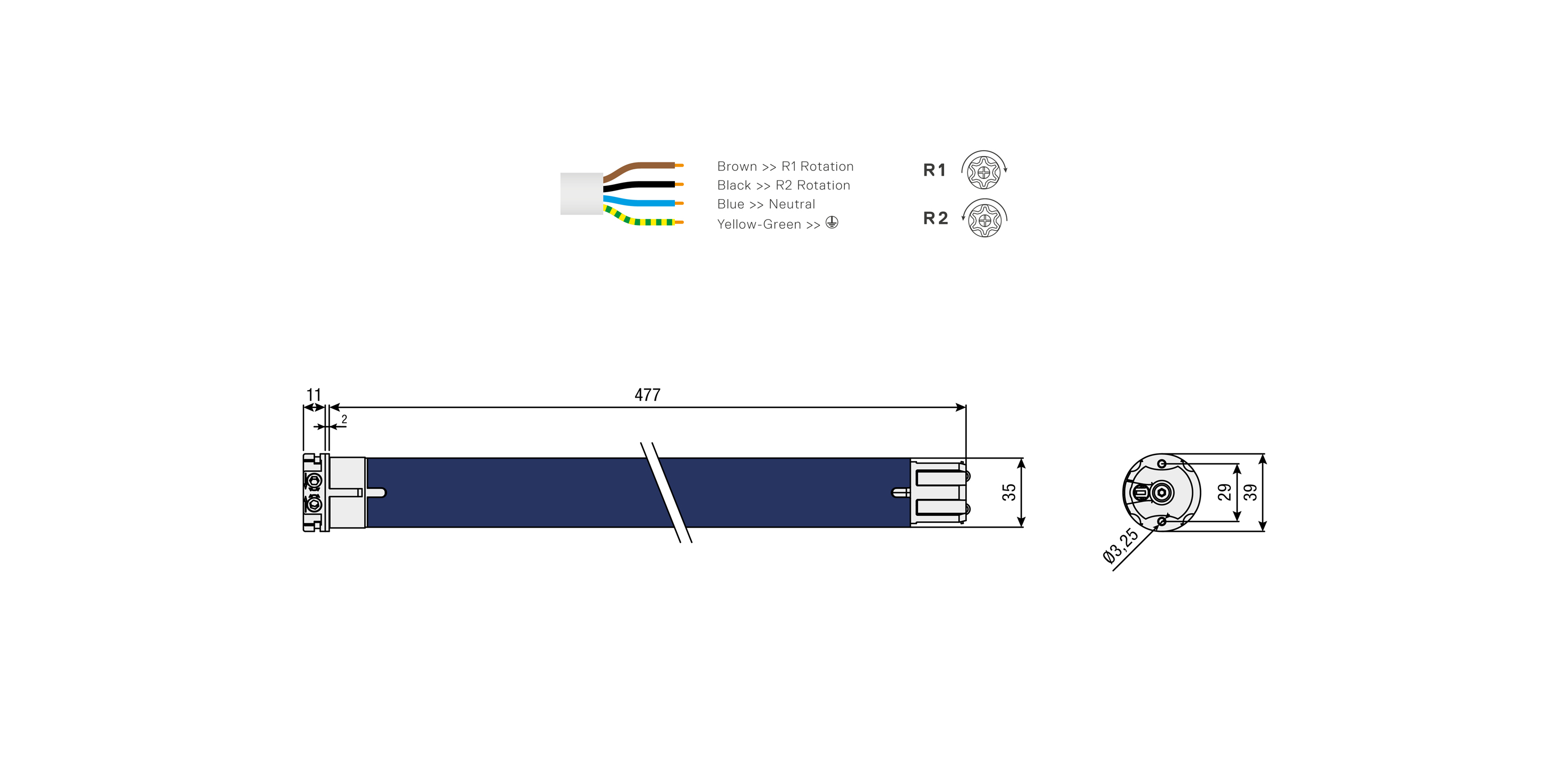

Technical drawing RO.40 9/16
