RO.50 10/17

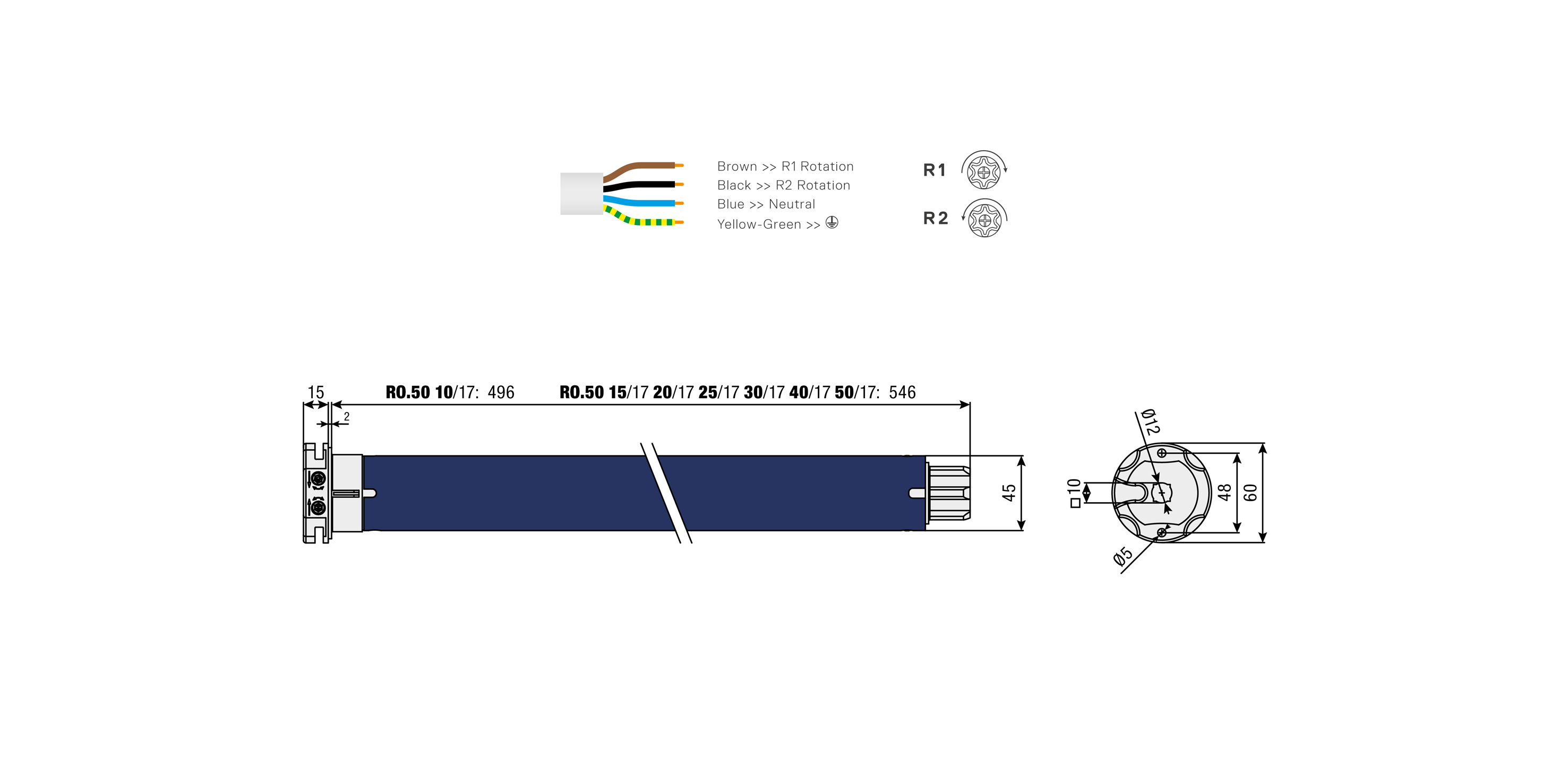

TUBOLAR MOTOR Ø 45MM (10NM - 17 R.P.M)
-
45 mm -
10 Nm
RO.50 10/17
-
Mechanical stop
Adjusting the mechanical stop is easy and intuitive and ensuring a correct stop position in time. -
Robustness and safety
The star-shaped reduction gear pin is available in technopolymer (10-30 Nm) or zamak (40-50 Nm). In both RO.50 versions it ensures excellent operation and maximum reliability.
| Motor supply | 230 Vac 50 Hz |
| Max absorbed current | 0.60 A |
| Absorbed power | 135 W |
| Limit switch revolutions | 25 |
| Maximum torque | 10 Nm |
| Speed | 17 r.p.m. |
| Operating time | 4 min |
| Protection rating | IP44 |
| 4 x 0.75 mm² cable | lg. 2.45 m |
| Weight | 2.00 kg |
 | RO.50 OT52Ø50 - Octagonal adapters kit. |
 | RO.50 OT60Ø60 - Octagonal adapters kit. |
 | RO.50 OT70Ø70 - Octagonal adapters kit. |
 | RO.50 OG70Ø70 - Ogive adapters kit. |
 | RO.50 OG78Ø78 - Ogive adapters kit. |
 | SHADE230 Vac Control Panel. |
 | SHADE 4230 Vac Control Panel. |
 | ES.MINI230 Vac Control Panel. |
 | RO.056910 mm flanged square. For models up to 30 Nm. |
 | RO.056610 mm flanged square with omega bracket. For models up to 30 Nm. |
 | RO.0558Adjustable support. For models up to 30 Nm. |
 | RO.057210 mm square support with hole, without release. For models up to 30 Nm. |
 | RO.057310 mm square adjustable support, without release. For models up to 32 Nm. |
 | RO.0596Kit rapid metal support. Recommended for forces of more than 30 Nm. |
 | RO.OCCEyelet 86 mm, hexagon 7 mm. |
 | RO.OCLEyelet 180 mm, hexagon 7 mm. |
 | RO.ASArticulated bar with hook (L=150 cm). |
 | RO.SD60°Articulated joint with eyelet 60°. |
 | RO.SD90°Articulated joint with eyelet 90°. |
