RO.50 40/17

TUBOLAR MOTOR Ø 45MM (40NM - 17 R.P.M)

RO.50 40/17

  • Mechanical stop

    Adjusting the mechanical stop is easy and intuitive and ensuring a correct stop position in time.
  • Robustness and safety

    The star-shaped reduction gear pin is available in technopolymer (10-30 Nm) or zamak (40-50 Nm). In both RO.50 versions it ensures excellent operation and maximum reliability.
Max absorbed current 1.25 A
Absorbed power 275 W
Motor supply 230 Vac 50 Hz
Limit switch revolutions 25
Maximum torque 40 Nm
Speed 17 r.p.m.
Operating time 4 min
4 x 0.75 mm² cable lg. 2.45 m
Weight 3.05 kg

RO.50 OT52

Ø50 - Octagonal adapters kit.

RO.50 OT60

Ø60 - Octagonal adapters kit.

RO.50 OT70

Ø70 - Octagonal adapters kit.

RO.50 OG70

Ø70 - Ogive adapters kit.

RO.50 OG78

Ø78 - Ogive adapters kit.

RO.0558

Adjustable support. For models up to 30 Nm.

RO.0566

10 mm flanged square with omega bracket. For models up to 30 Nm.

RO.0569

10 mm flanged square. For models up to 30 Nm.

RO.0572

10 mm square support with hole, without release. For models up to 30 Nm.

RO.0573

10 mm square adjustable support, without release. For models up to 32 Nm.

RO.0596

Kit rapid metal support. Recommended for forces of more than 30 Nm.

RO.OCC

Eyelet 86 mm, hexagon 7 mm.

RO.OCL

Eyelet 180 mm, hexagon 7 mm.

RO.AS

Articulated bar with hook (L=150 mm).

RO.SD60°

Articulated joint with eyelet 60°.

RO.SD90°

Articulated joint with eyelet 90°.

CL.FWS

230 Vac Control Panel.

CL.G4 / CL.G4.RR

230 Vac Control Panel.

ES.MINI

230 Vac Control Panel.

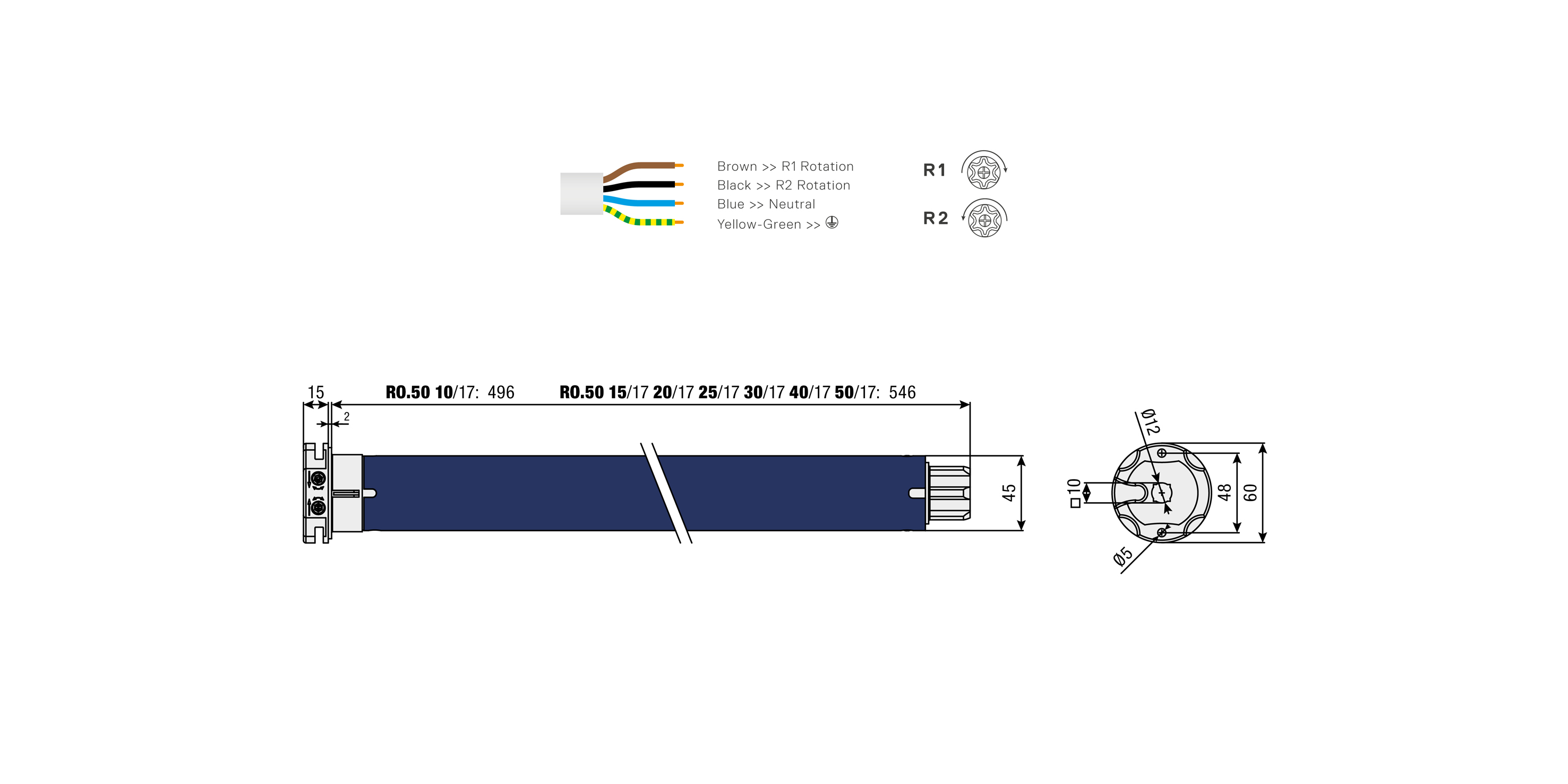

Technical drawing RO.50 40/17
