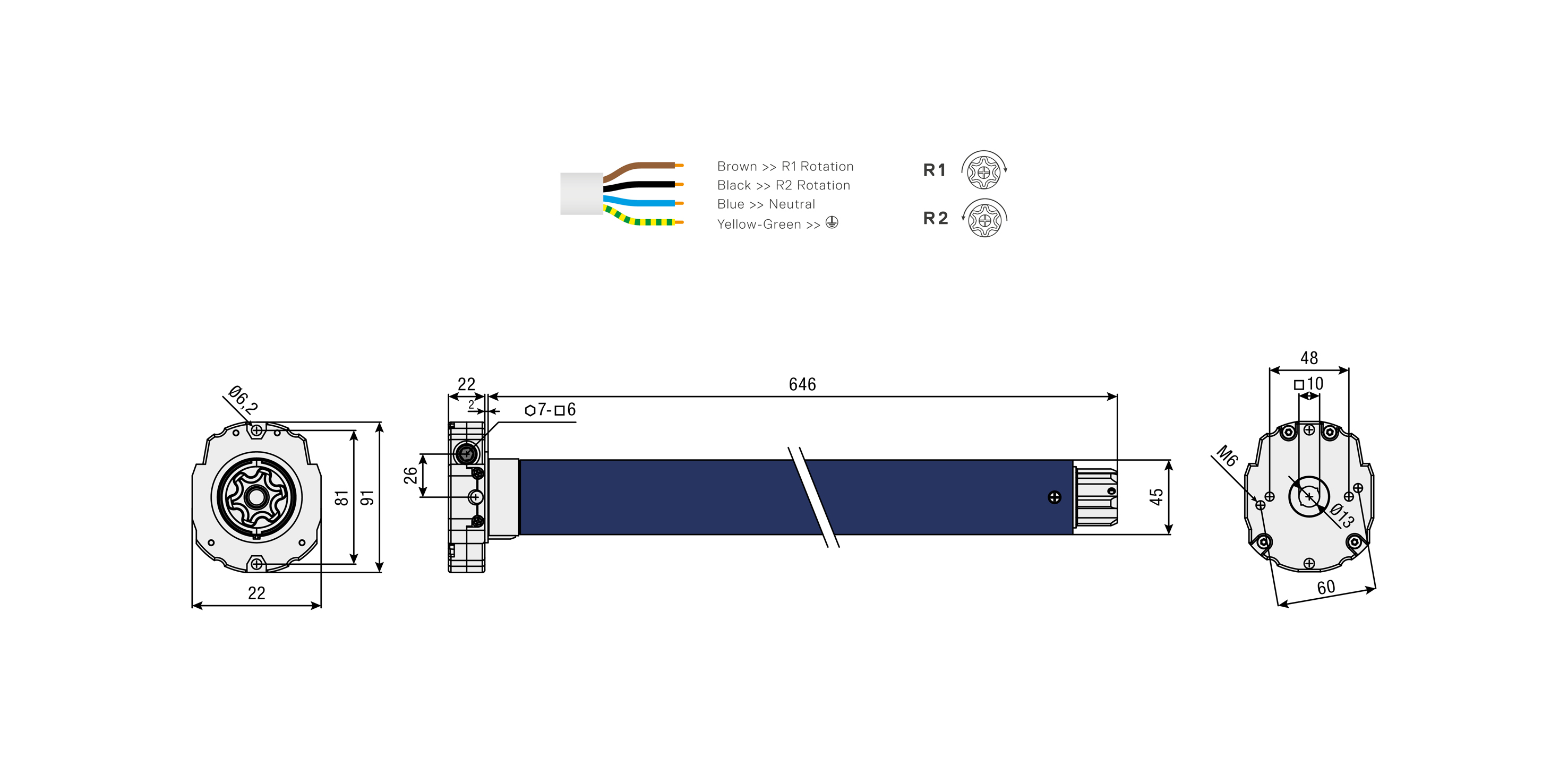

RO.50M 32/17
TUBOLAR MOTOR Ø 45MM (32NM - 17 R.P.M)
-
45 mm -
32 Nm
RO.50M 32/17
-
Mechanical stop
Adjusting the stop is easy and intuitive. Dual access to the adjustment screws. -
Robustness and safety
The star-shaped metal reduction gear pin makes the motor very reliable and high performances. -
Mounting without supports
The motor can be mounted without additional supports. Thanks to the metal head, it is very easy and quick to install. -
Compact override
The RO.50M model has a compact manual override. Its small size means that it can also be installed in locations with limited space. The reduction ratio is 1:24.
| Motor supply | 230 Vac 50 Hz |
| Max absorbed current | 1.10 A |
| Absorbed power | 250 W |
| Limit switch revolutions | 32 |
| Maximum torque | 32 Nm |
| Speed | 17 r.p.m. |
| Operating time | 4 min |
| Protection rating | IP44 |
| 4 x 0.75 mm² cable | lg. 2.45 m |
| Weight | 3.80 kg |
 | RO.50 OT52Ø50 - Octagonal adapters kit. |
 | RO.50 OT60Ø60 - Octagonal adapters kit. |
 | RO.50 OT70Ø70 - Octagonal adapters kit. |
 | RO.50 OG70Ø70 - Ogive adapters kit. |
 | RO.50 OG78Ø78 - Ogive adapters kit. |
 | SHADE230 Vac Control Panel. |
 | SHADE 4230 Vac Control Panel. |
 | ES.MINI230 Vac Control Panel. |
 | RO.055610 mm flanged square with omega bracket. |
 | RO.0568100x100 mm plate. |
 | RO.057210 mm square support with hole, without release. For models up to 30 Nm. |
 | RO.057310 mm square adjustable support, without release. For models up to 32 Nm. |
 | RO.058010 mm flanged square. |
 | RO.OCCEyelet 86 mm, hexagon 7 mm. |
 | RO.OCLEyelet 180 mm, hexagon 7 mm. |
 | RO.ASArticulated bar with hook (L=150 cm). |
 | RO.SD60°Articulated joint with eyelet 60°. |
 | RO.SD90°Articulated joint with eyelet 90°. |
