RO.50M 50/12

TUBOLAR MOTOR Ø 45MM (50NM - 12 R.P.M)

RO.50M 50/12

  • Mechanical stop

    Adjusting the stop is easy and intuitive. Dual access to the adjustment screws.
  • Robustness and safety

    The star-shaped metal reduction gear pin makes the motor very reliable and high performances.
  • Mounting without supports

    The motor can be mounted without additional supports. Thanks to the metal head, it is very easy and quick to install.
  • Compact override

    The RO.50M model has a compact manual override. Its small size means that it can also be installed in locations with limited space. The reduction ratio is 1:24.
Max absorbed current 1.25 A
Absorbed power 275 W
Motor supply 230 Vac 50 Hz
Limit switch revolutions 32
Maximum torque 50 Nm
Speed 12 r.p.m.
Operating time 4 min
Protection rating IP44
4 x 0.75 mm² cable lg. 2.45 m
Weight 3.80 kg

RO.50 OT52

Ø50 - Octagonal adapters kit.

RO.50 OT60

Ø60 - Octagonal adapters kit.

RO.50 OT70

Ø70 - Octagonal adapters kit.

RO.50 OG70

Ø70 - Ogive adapters kit.

RO.50 OG78

Ø78 - Ogive adapters kit.

RO.0556

10 mm flanged square with omega bracket.

RO.0568

100x100 mm plate.

RO.0572

10 mm square support with hole, without release. For models up to 30 Nm.

RO.0573

10 mm square adjustable support, without release. For models up to 32 Nm.

RO.0580

10 mm flanged square.

RO.OCC

Eyelet 86 mm, hexagon 7 mm.

RO.OCL

Eyelet 180 mm, hexagon 7 mm.

RO.AS

Articulated bar with hook (L=150 mm).

RO.SD60°

Articulated joint with eyelet 60°.

RO.SD90°

Articulated joint with eyelet 90°.

CL.FWS

230 Vac Control Panel.

CL.G4 / CL.G4.RR

230 Vac Control Panel.

ES.MINI

230 Vac Control Panel.

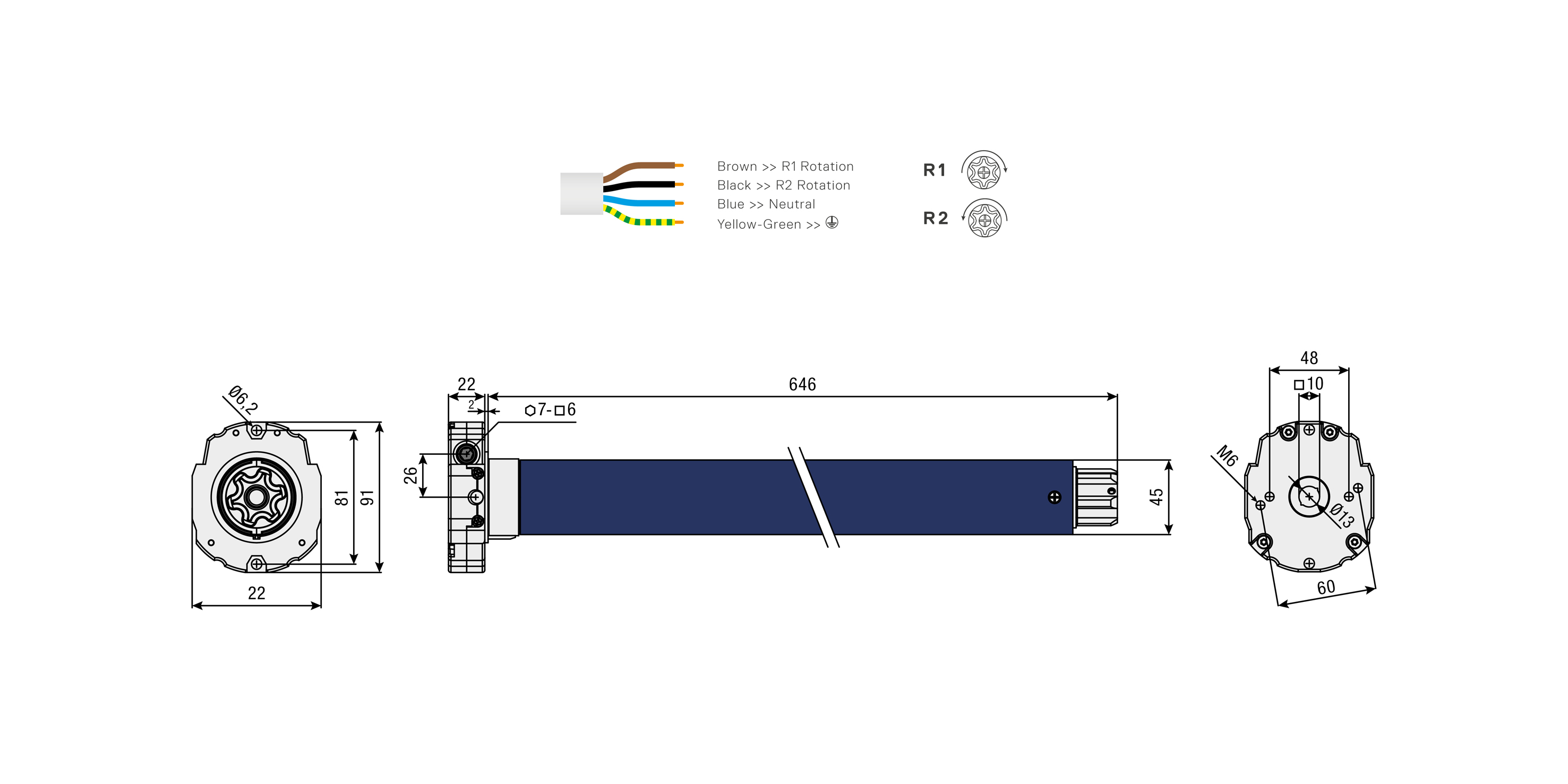

Technical drawing RO.50M 50/12
