RO.60M 100/11

TUBOLAR MOTOR Ø 58MM (100NM - 11 R.P.M)

RO.60M 100/11

  • Mechanical stop

    Adjusting the stop is easy and intuitive. Dual access to the adjustment screws.
  • Robustness and safety

    The star-shaped metal reduction gear pin makes the motor very reliable and high performances.
  • Compact override

    The RO.60M model has a compact manual override. Its small size means that it can also be installed in locations with limited space. The reduction ratio is 1:55.
  • Mounting without supports

    The motor can be mounted without additional supports. Thanks to the metal head, it is very easy and quick to install.
Motor supply 230 Vac 50 Hz
Max absorbed current 1.60 A
Absorbed power 360 W
Limit switch revolutions 29
Maximum torque 100 Nm
Speed 11 r.p.m.
Operating time 4 min
Protection rating IP44
4 x 0.75 mm² cable lg. 2.45 m
Weight 7 kg

SHADE

230 Vac Control Panel.

RO.60 OT70

Ø70 - Octagonal adapters kit.

SHADE 4

230 Vac Control Panel.

RO.60 TO70

Round adapters kit.

ES.MINI

230 Vac Control Panel.

RO.60 OG78

Ø78 - Ogive adapters kit.

RO.60 OG85

Ø85 - Ogive adapters kit.

RO.0552

Pin for 16 mm square with omega bracket for backup operating system.

RO.0568

100x100 mm plate.

RO.OCC

Eyelet 86 mm, hexagon 7 mm.

RO.OCL

Eyelet 180 mm, hexagon 7 mm.

RO.AS

Articulated bar with hook (L=150 cm).

RO.SD60°

Articulated joint with eyelet 60°.

RO.SD90°

Articulated joint with eyelet 90°.

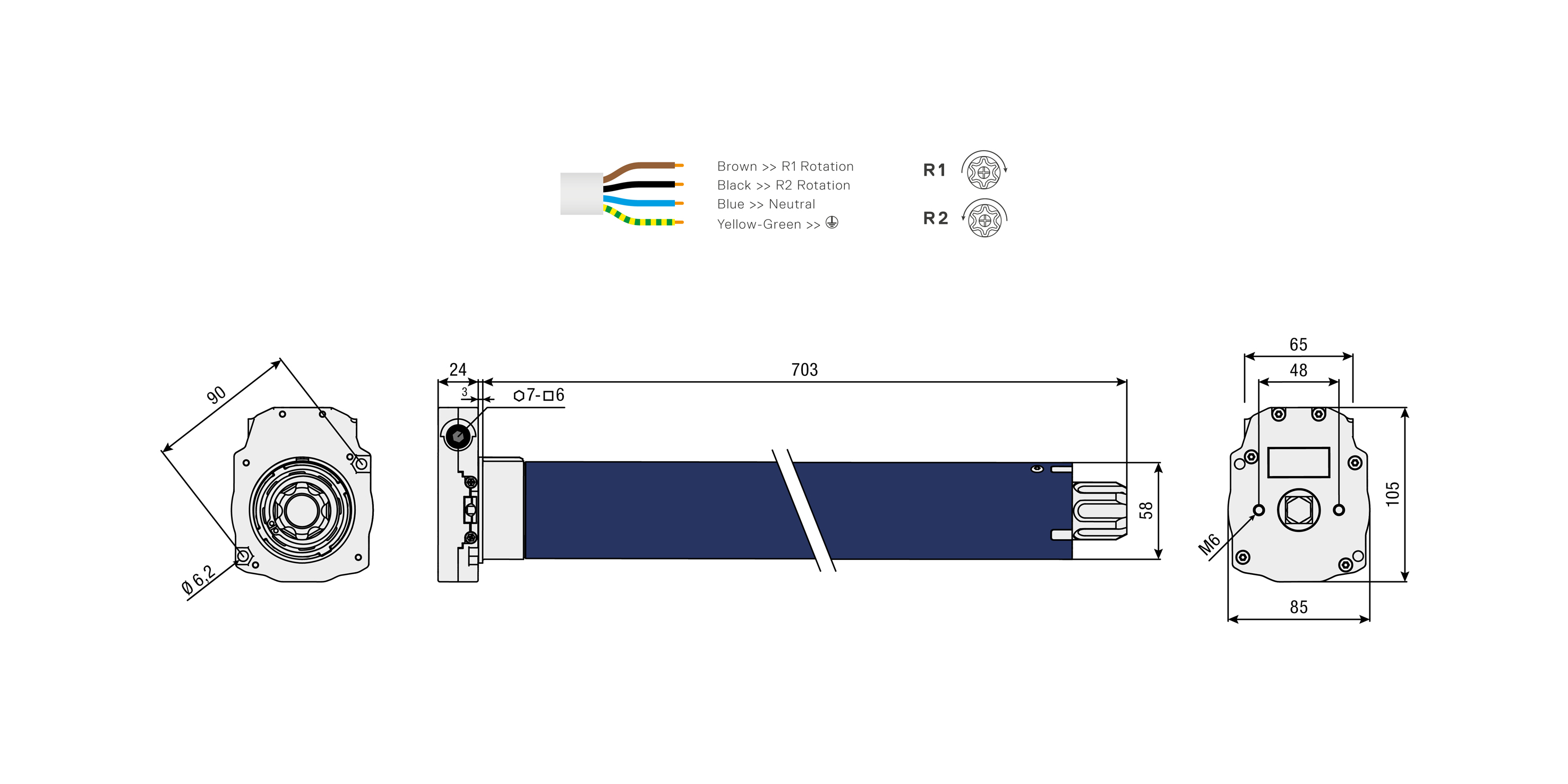

Technical drawing RO.60M 100/11
