ANGEL CAT Syncro 24

24 Vdc Chain operated electrical actuator

ANGEL CAT Syncro 24

Chain operated electrical actuator for outward opening windows, transom windows, domes and dormer windows. ANGEL CAT embodies the evolution of modern technologies for automated window frames. It guarantees safety, quality, efficiency, reliability and simple construction together with a pleasing design to give you an avant-garde window frame.

* The weight indicated in the table is subject to eventual variations according to the accessoires chosen.

  • Self-diagnostics

    Electronic with buzzer to indicate assembly errors.
  • Quick installation

    With system to attach and detach the chain quickly to and from the frame.
Connection of 2 or more motors in parallel Yes
Max absorbed current 1.3 A
Absorbed power 35 W
Mains power supply 24 Vdc
Maximum thrust 300 N
Available strokes 200-380 mm
Duration of stroke with no load 22"
Travel speed with no-load 17 mm/s
Limit switch Encoder
Pivot adjustment for tilt brackets 15 mm
Operating temperature -5 °C ÷ + 50 °C
Service type S2 - 4'
Protection rating IP30
Chain position control Yes
Acoustic device to indicate assembly errors (buzzer) Yes
Weight of installed equipment* 1,1 kg

SA.24

24 Vdc Control Panel.

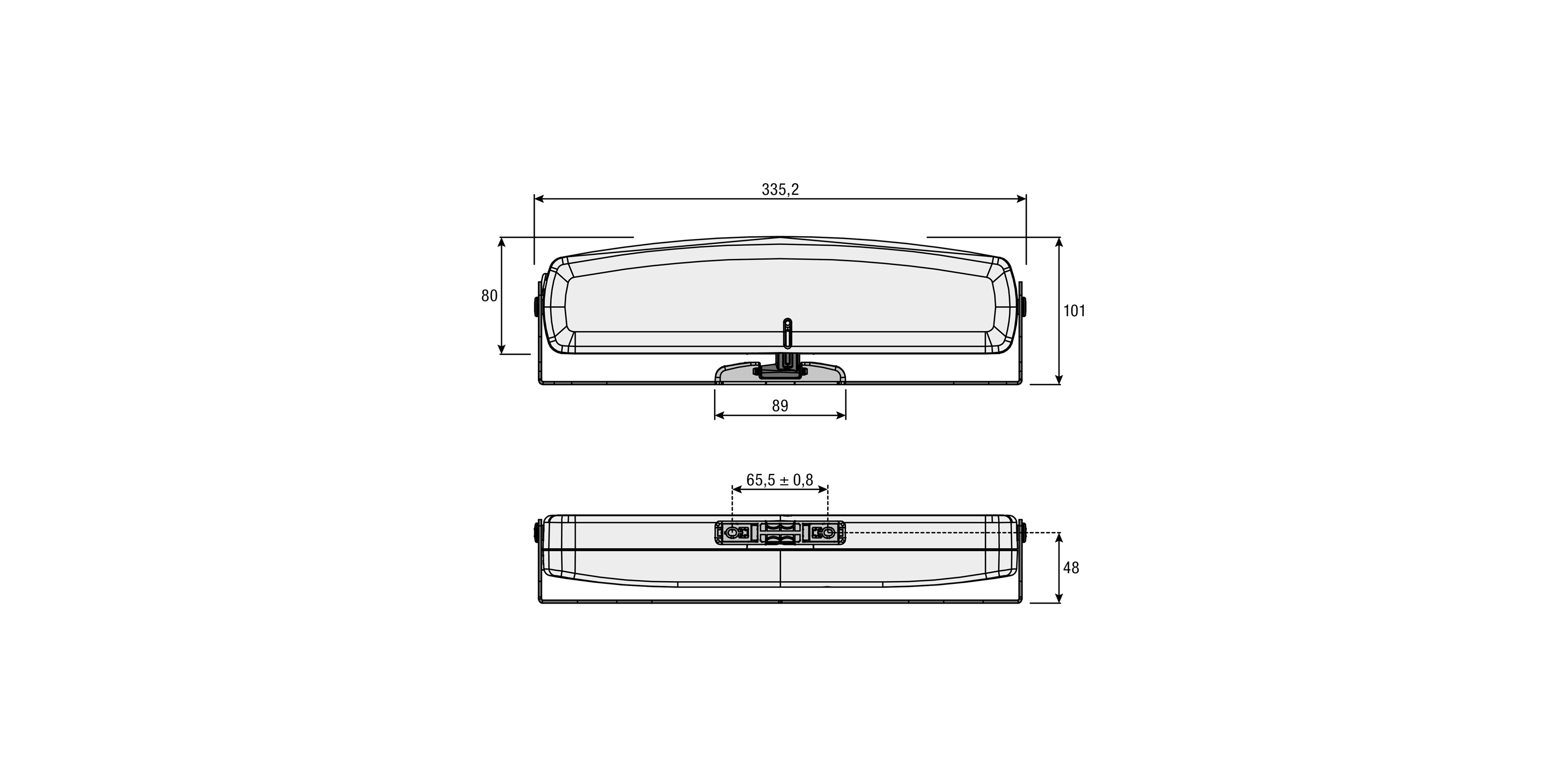

Technical drawing ANGEL CAT Syncro 24
