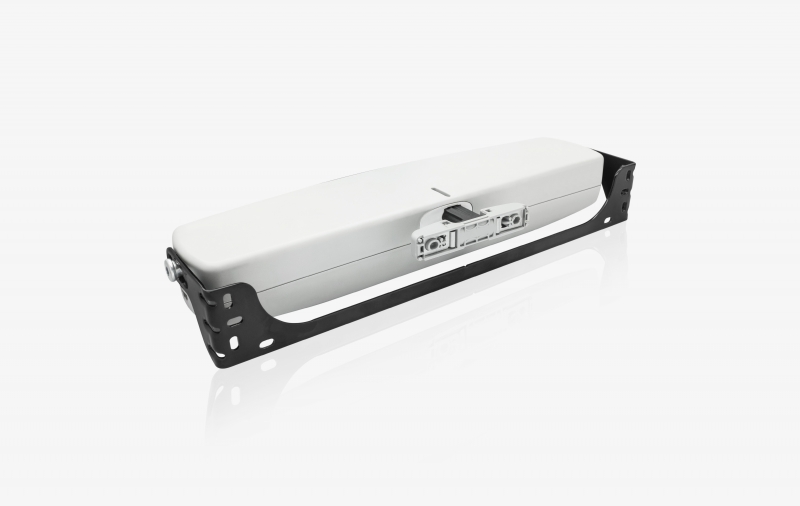

ANGEL CAT 230
230 Vac Chain operated electrical actuator
-
230 Vac
ANGEL CAT 230
Chain operated electrical actuator for outward opening windows, transom windows, domes and dormer windows. ANGEL CAT embodies the evolution of modern technologies for automated window frames. It guarantees safety, quality, efficiency, reliability and simple construction together with a pleasing design to give you an avant-garde window frame.
* The weight indicated in the table is subject to eventual variations according to the accessoires chosen.
-
Self-diagnostics
Electronic with buzzer to indicate assembly errors. -
Quick installation
With system to attach and detach the chain quickly to and from the frame.
| Motor supply | 230 Vac 50/60 Hz |
| Max absorbed current | 0,26 A |
| Absorbed power | 60 W |
| Maximum thrust | 300 N |
| Available strokes | 200-380 mm |
| Duration of stroke with no load | 14" |
| Travel speed with no-load | 27 mm/s |
| Limit switch | Encoder |
| Micro-switch | 300 N |
| Pivot adjustment for tilt brackets | 15 mm |
| Operating temperature | -5 °C ÷ + 50 °C |
| Service type | S2 - 4' |
| Protection rating | IP 30 |
| Double electric insulation | Yes |
| Connection of 2 or more motors in parallel | Yes |
| Chain position control | Yes |
| Acoustic device to indicate assembly errors (buzzer) | Yes |
| Weight of installed equipment* | 1,1 kg* |
 | UP / UP-CDead man control panel. |
