SB.35

up to 3.5 m.
Complete technical sheet

SB.35

Hydraulic actuator for fi tting underground, with built-in hydraulic control unit.
Irreversible with block on opening and closing for gates up to 3.5 m, with hydraulic slowing-down on opening and closing.

  NEW ELECTRIC MOTOR​

  • Bio Oil

    The very viscous oil ensures excellent performance even in low temperatures, reducing component wear to a minimum.
  • High-quality materials

    Made from very high-quality materials. Profiles and headers made from corrosion-proof anodised aluminium, steel cylindrical tubes with Niploy treatment and aluminium cap protecting the metal adjustment valves. Piston unit made entirely of aluminium.
  • Maximum safety and reliability

    The compact single-piece construction is designed for maximum safety. The internal connections reduce the risk of the oil leaking.
  • Very easy to install

    Installation is easy with the hydraulic control unit assembled in a single piece with the ram. The free-standing foundation block means that the actuator can be replaced without dismantling the gate.
  • Perfect symmetry

    The same actuator can be installed on the right or left leafs.
  • Safe and precise manoeuvring

    The brass adjustment screws and double-action slowdown mechanism provide very precise manoeuvring and make the system very safe.
No blocks (reversible) SB.35
90° opening time (excluding slowing-down) 15 s
Blocks in opening and closing phases (non-reversible) SB.35AC
Max absorbed current 1,1 A
Absorbed power 250 W
Motor supply 230 Vac 50/60 Hz
Pump flow rate 0.75 l/min
Max. oil pressure 30 Bar
Maximum torque 450 Nm
Capacitor 10 μF
Angular speed 6 °/s
Hydraulic slow-down In opening and closing phases
Thermal protection 150 °C
Operating temperature -20 °C ÷ + 50 °C
Protection rating IP67
Operating cycle INTENSIVE USE
Braking rotation angle in closing phase Fixed 10°
Braking rotation angle in opening phase Between 80° and 100°
Max usable rotation angle 100°
Maximum leaf length 3.5 m
Maximum leaf weight 800 Kg
Weight 15 kg
Oil BIO OIL

SB.KL

Release with customised key.

SB.SL

Lever-operated release.

SB.BUSH

Bush with welded plate for reversible models.

SB.FB

Foundation box with cataphoresis coating.

DU.V96

12 Vdc vertical electric lock.

E.LOCK

230 Vac vertical electric lock.

E.LOCKSE

Extended cylinder for E.LOCK electric lock.

BIO OIL

Biodegradable hydraulic oil. 2-litre container.

BRAINY

230 Vac Control Panel.

CIDRA RI-C

230 Vac Control Panel.

DREAMY

230 Vac Control Panel.

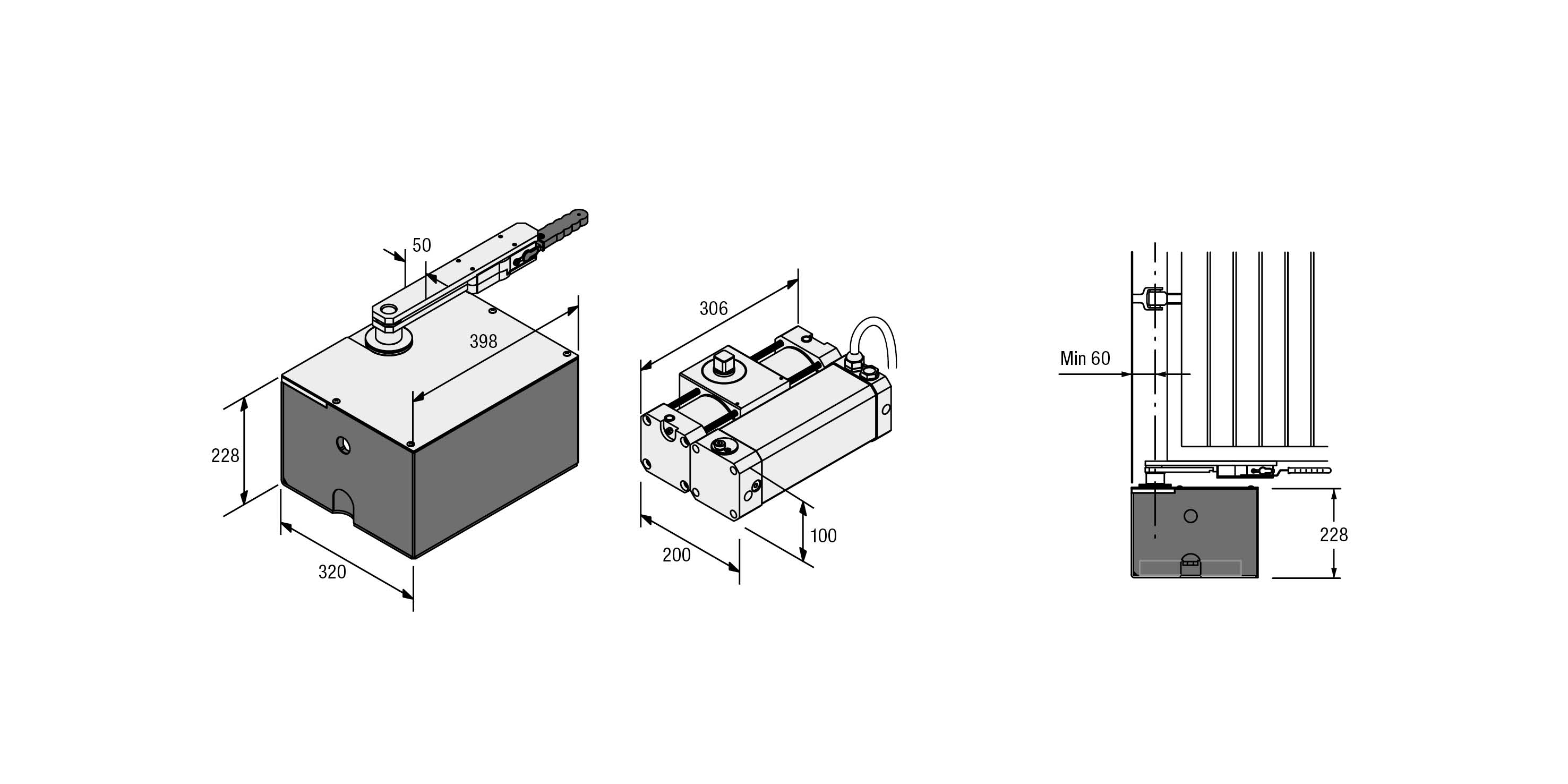

Technical drawing SB.35
