ES.MINI

ES.MINI

Application:​
1 actuator for awnings or blinds or lights control.
Control unit power supply:
100/250 Vac – 50/60 Hz

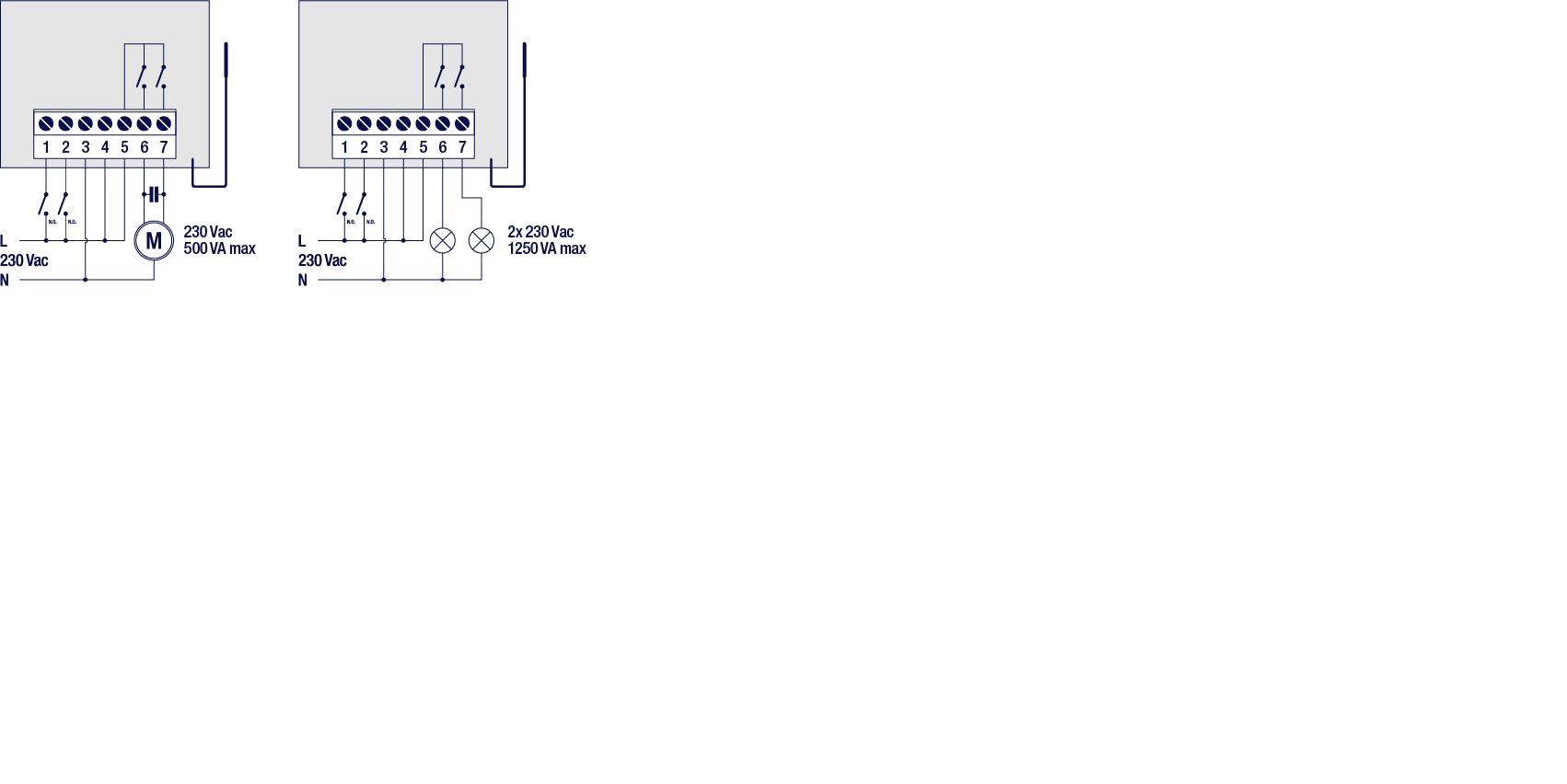

Motor power supply:
Motor control mode: 230 Vac 500 W max
Lights control mode: 230 Vac 1250 W max
Main functions:​
Operating logic set using pushbutton and integrated LEDs. | Configurable operating mode: motor or lights control. | Integrated 433.92 MHz 64-code radio receiver with 2 encoding systems (rolling code, programmable code). | Fixed terminal boards. | Automatic or dead man function logic. | Adjustable working time. | Inputs for lift and lower controls (motor control) or relays 1 and 2 (lights control). | Small dimensions 42 x 36 x 21 for housing in commonly-used flush-mounted boxes. | IP20.
