1 actuator for roller shutters.
Control unit power supply:
230Vac - 50Hz
Motor power supply:
24 Vdc 150W max

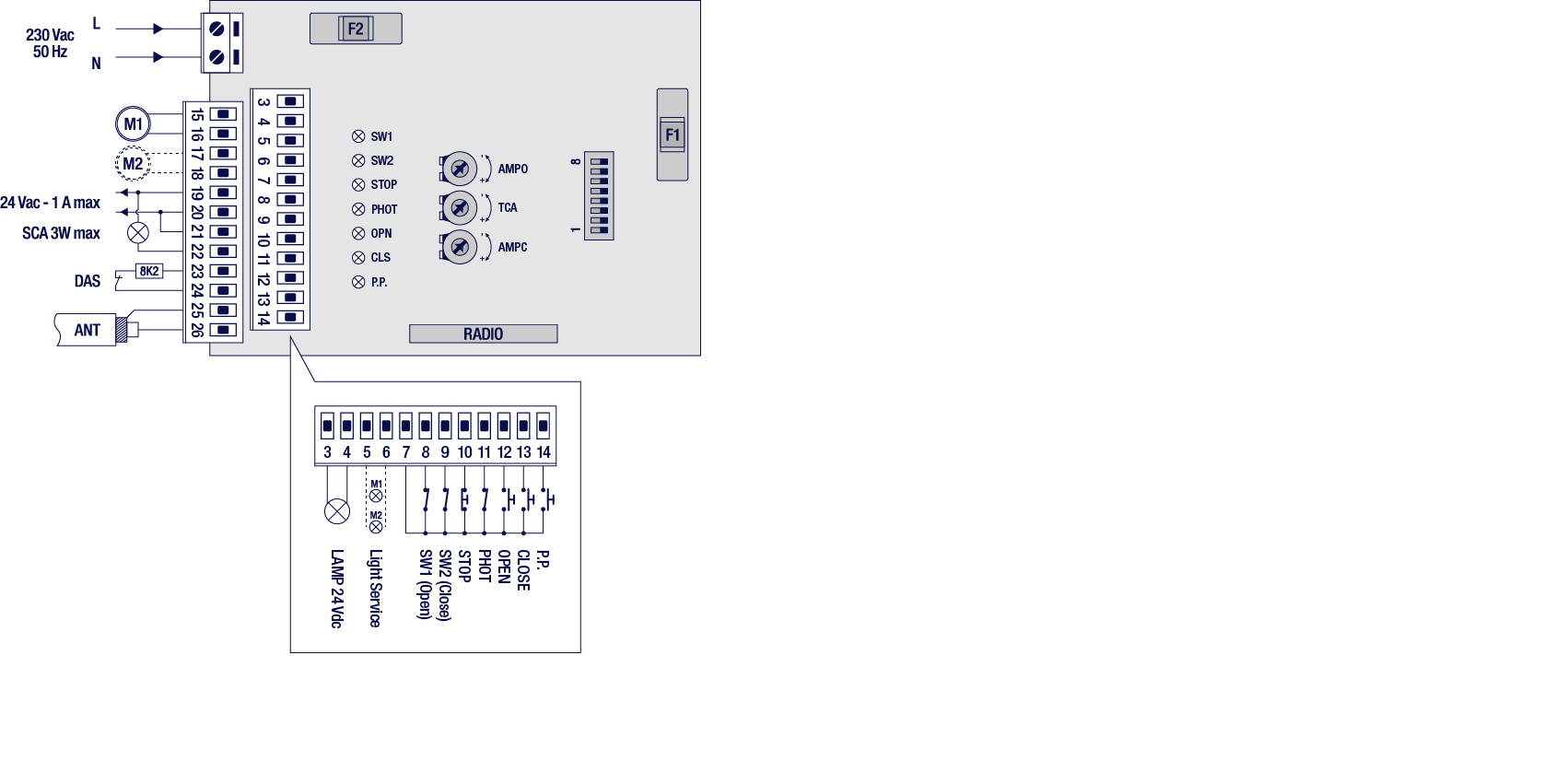

Main functions:
Adjustment of parameters and operating logic using trimmer, dip switches and pushbutton. | Predesigned for plug-in radio receiver. | Removable terminal boards. | Automatic, semi-automatic or dead man function logic. | Open, Close, Step-by-Step, Stop and Photocell inputs. | Input for NC or 8k2 sensitive edge. | Inputs for opening and closing limit switches. | Output for gate open indicator. | LED diagnostics. | Output for power supply of accessories 24 Vdc 1 A max. | Option to connect accessories or battery charger. | IP55.
DA.BT22.1Ah 12 Vdc Battery. | |
DA.BT67Ah 12 Vdc Battery. | |
T2VATwo-channel transmitter. | |
THUMB.3232-channel transmitter. | |
ONE.2WITwo-channel universal receiver, slot-in. |
