HD.35

up to 3.5 m.

HD.35

​HD.35 - Hydraulic operator for gates up to 3.5 m - No blocks (reversible).
HD.35C - Irreversible hydraulic operator with rear and front joint for gates up to 3.5 m with closing blocks.
HD.35AC - Irreversible hydraulic operator with rear and front joint for gatesb up to 3.5 m with opening and closing blocks.
HD.35SA - Irreversible hydraulic operator or gates up to 3.5 m with automatic release (easy reversibility).

  HIGH-PERFORMANCE MOTOR

Easy reversibility (SA version)
With the automatic release (SA) version of the HYDRO models, the gate can be moved with no effort when the motor is stopped. Unlike the reversible models (non SA), because of the special automatic release system, when the operator is stopped, the gate can be opened and moved extremely easily, without having to exert any pressure. The electric lock must be used.

  • Reliability and high-quality materials

    Chrome-plated steel shaft and anodised aluminium profiles ensure maximum resistance to atmospheric agents. Brass bypass valves are used for greater regulation, ensuring maximum crush-resistance.
  • Top performances

    The electric motor ensures excellent performance, optimal thrust and more intensive use.
  • Personalised key-operated release

  • Self-alignment

    The rear pivot joint makes installation easier, making up for any lack of alignment of the gate.
  • Perfect stroke adjustment

    The adjustable front spherical joint enables perfect adjustment of the stroke, the ideal solution for systems on gates that are not perfectly aligned.
  • Very easy to install and maintain

    The terminal boards built into the oil cap make installation faster and easier. It is also easy to replace the power cable and control the oil level even when the operator is already installed.
  • Safe and smooth manoeuvring

    The adjustable hydraulic slowdown in the closing phase ensures silent and very smooth manoeuvring. Avoiding strong impacts against the mechanical stops also reduces the risk of breakages.
No blocks (reversible) HD.35
Block in closing phase HD.35C
Blocks in opening and closing phases (non-reversible) HD.35AC
Automatic release (easy reversibility) HD.35SA
Motor supply 230 Vac 50/60 Hz
Max absorbed current 1,1 A
Pump flow rate 1 l/min
Absorbed power 250 W
Max. oil pressure 33 Bar
Maximum thrust 5000 N
Capacitor 10 μF
Stroke length 270 mm
Shaft speed 1.3 cm/s
Ram shaft diameter 20 mm
Hydraulic slow-down In closing
Joints Front and rear
Thermal protection 150 °C
Operating temperature -20 °C ÷ + 50 °C
Protection rating IP55
Operating cycle INTENSIVE USE
Maximum leaf length 3.5 m
Maximum leaf weight 500 Kg
Oil D.OIL

BRAINY

230 Vac Control Panel.

CIDRA RE-C

230 Vac Control Panel.

DREAMY

230 Vac Control Panel.

DU.FIX

Counterplate suitable for the installation on columns made of stones.

HD.STC

Internal mechanical stop in opening and closing.

DU.V96

12 Vdc vertical electric lock.

E.LOCK

230 Vac vertical electric lock.

E.LOCKSE

Extended cylinder for E.LOCK electric lock.

D.OIL

Biodegradable hydraulic oil. 2-litre container.

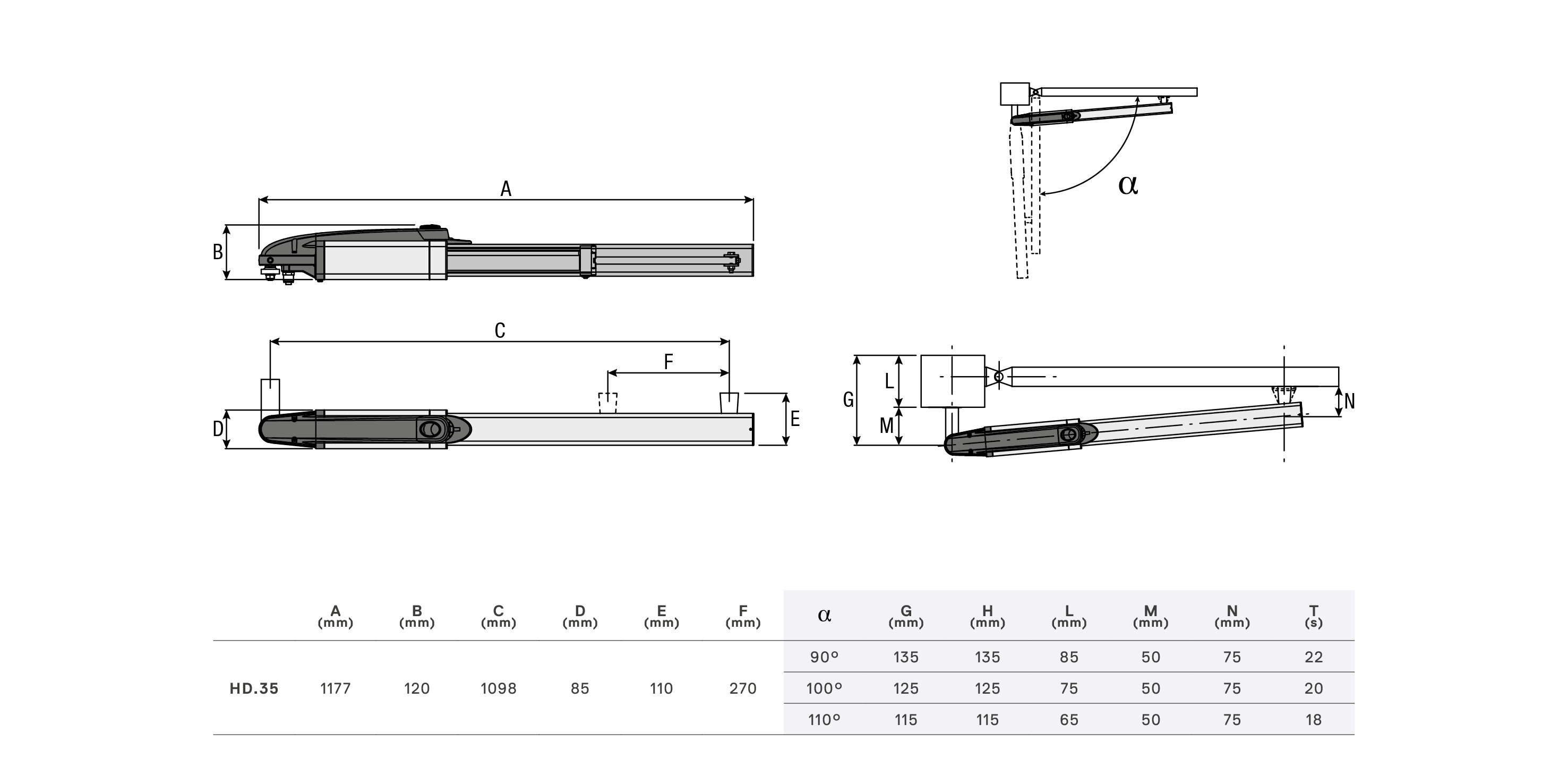

Technical drawing HD.35
